Microchip Technology-1N5637A/TR - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	12.8V
Voltage - Breakdown (Min):	14.3V
Voltage - Clamping (Max) @ Ipp:	21.2V
Current - Peak Pulse (10/1000µs):	71A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 175°C (TA)
Mounting Type:	Through Hole
Package / Case:	DO-13
Supplier Device Package:	DO-13 (DO-202AA)

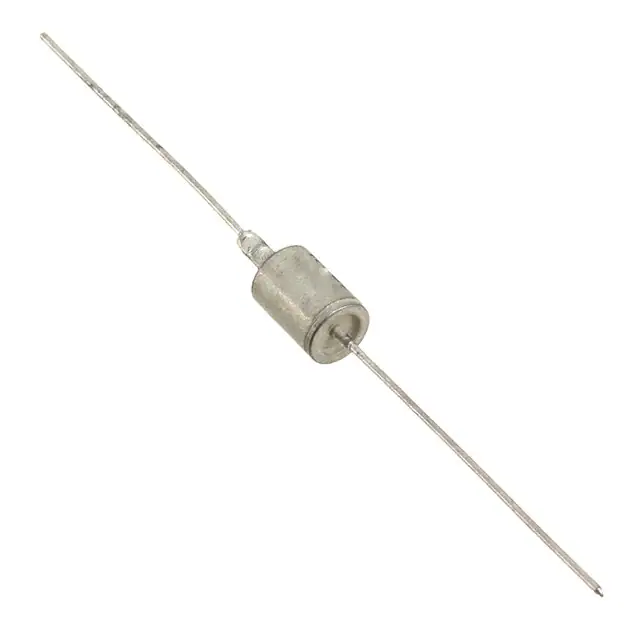

Microchip Technology 1N5637A/TR
