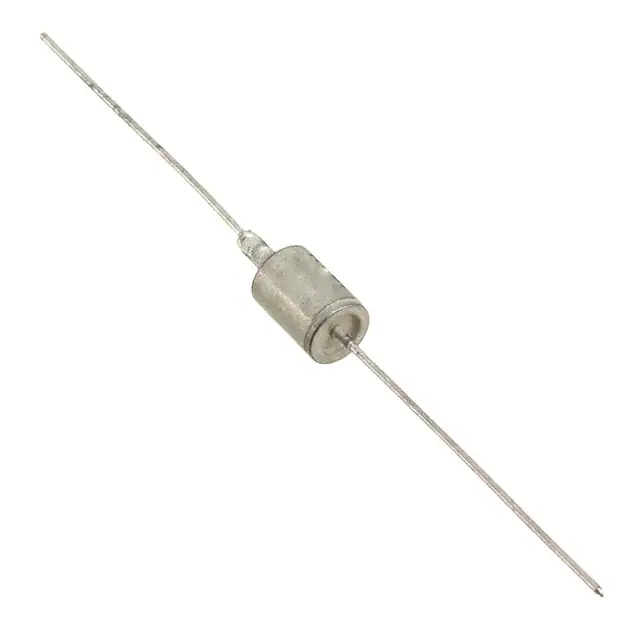

| Part Number | 1N5637A | 1N5638A | 1N5631A |
|---|---|---|---|
| Manufacturer | Microchip Technology | Solid State Inc. | Microchip Technology |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12.8V | 13.6V | 7.02V |
| Voltage - Breakdown (Min) | 14.3V | 15.2V | 7.79V |
| Voltage - Clamping (Max) @ Ipp | 21.2V | 22.5V | 12.1V |
| Current - Peak Pulse (10/1000µs) | 71A | 67A | 124A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-13 | DO-13 | DO-13 |
| Supplier Device Package | DO-13 (DO-202AA) | DO-13 | DO-13 |
