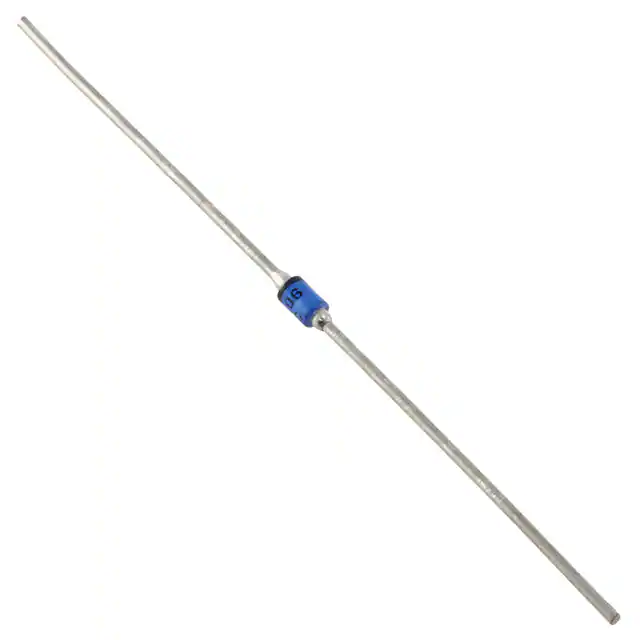

| Part Number | 1N5622 | 1N5624 | 1N5625 | 1N5626 | 1N5627 | 1N5623 | 1N5620 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Harris Corporation | NTE Electronics, Inc | NTE Electronics, Inc | NTE Electronics, Inc | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 200 V | 400 V | 600 V | 800 V | 1000 V | 800 V |
| Current - Average Rectified (Io) | 1A | 3A | 3A | 3A | 3A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A | 1 V @ 3 A | 1 V @ 3 A | 1 V @ 3 A | 1 V @ 3 A | 1.6 V @ 3 A | 1.3 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | - | - | - | - | 500 ns | 2 µs |
| Current - Reverse Leakage @ Vr | 500 nA @ 1000 V | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 800 V | 500 nA @ 1000 V | 500 nA @ 800 V |
| Capacitance @ Vr, F | - | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 15pF @ 12V, 1MHz | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | A, Axial | SOD-64, Axial | SOD-64, Axial | SOD-64, Axial | SOD-64, Axial | A, Axial | A, Axial |
| Supplier Device Package | - | SOD-64 | SOD-64 | SOD-64 | SOD-64 | - | - |
| Operating Temperature - Junction | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C |
