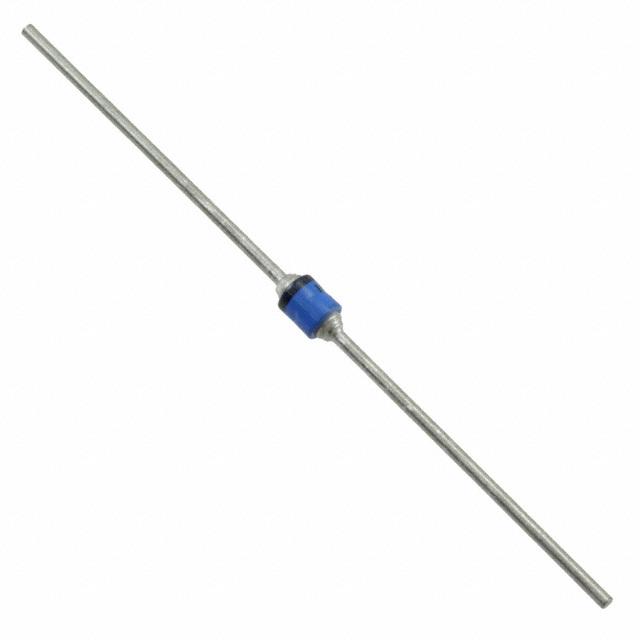

| Part Number | 1N5554 | 1N5550 | 1N5551 | 1N5552 | 1N5553 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Solid State Inc. | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 200 V | 400 V | 600 V | 800 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 9 A | 1.2 V @ 9 A | 1 V @ 3 A | 1.2 V @ 9 A | 1.2 V @ 9 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V | 1 µA @ 200 V | 1 µA @ 400 V | 1 µA @ 600 V | 1 µA @ 800 V |
| Capacitance @ Vr, F | - | - | 120pF @ 12V, 1MHz | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | B, Axial | B, Axial | Axial | B, Axial | B, Axial |
| Supplier Device Package | - | - | Axial | - | - |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C |
