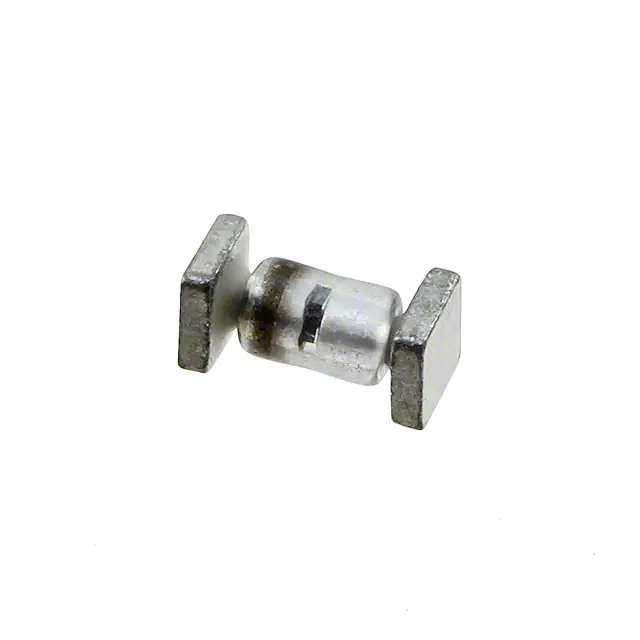

| Part Number | 1N4996US | 1N4966US | 1N4976US | 1N4986US |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 390 V | 22 V | 56 V | 150 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 1.8 kOhms | 5 Ohms | 35 Ohms | 330 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 297 V | 2 µA @ 16.7 V | 2 µA @ 42.6 V | 2 µA @ 114 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B |
