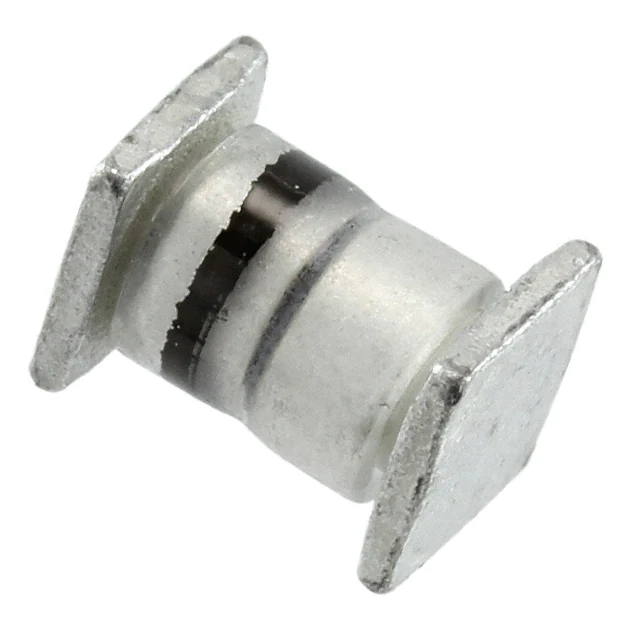

| Part Number | 1N4985US | 1N4986US | 1N4987US | 1N4988US | 1N4955US | 1N4965US | 1N4975US | 1N4980US | 1N4981US | 1N4982US | 1N4983US | 1N4984US |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 130 V | 150 V | 160 V | 180 V | 7.5 V | 20 V | 51 V | 82 V | 91 V | 100 V | 110 V | 120 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 190 Ohms | 330 Ohms | 350 Ohms | 450 Ohms | 1.5 Ohms | 4.5 Ohms | 27 Ohms | 80 Ohms | 90 Ohms | 110 Ohms | 125 Ohms | 170 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 98.8 V | 2 µA @ 114 V | 2 µA @ 121.6 V | 2 µA @ 136.8 V | 100 µA @ 5.7 V | 2 µA @ 15.2 V | 2 µA @ 38.8 V | 2 µA @ 62.2 V | 2 µA @ 69.2 V | 2 µA @ 76 V | 2 µA @ 83.6 V | 2 µA @ 91.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
