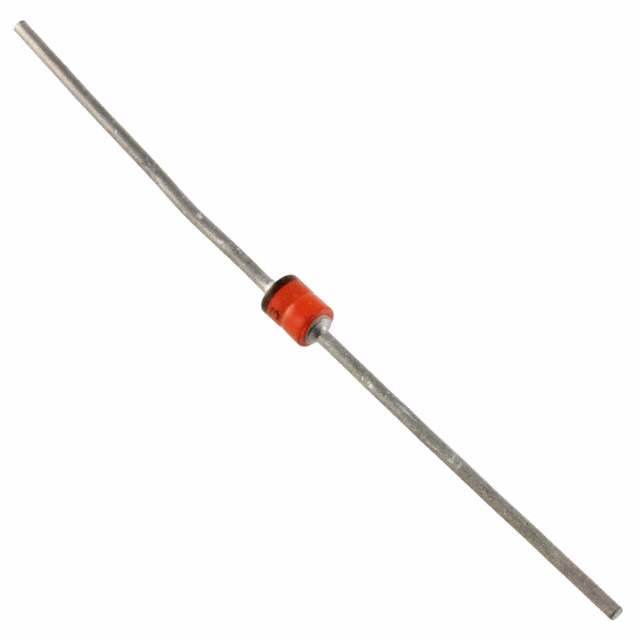

| Part Number | 1N4985 | 1N4986 | 1N4987 | 1N4925 | 1N4955 | 1N4965 | 1N4975 | 1N4980 | 1N4983 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 130 V | 150 V | 160 V | 19.2 V | 7.5 V | 20 V | 51 V | 82 V | 110 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 500 mW | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 190 Ohms | 330 Ohms | 350 Ohms | 75 Ohms | 1.5 Ohms | 4.5 Ohms | 27 Ohms | 80 Ohms | 125 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 98.8 V | 2 µA @ 114 V | 2 µA @ 121.6 V | - | 100 µA @ 5.7 V | 2 µA @ 15.2 V | 2 µA @ 38.8 V | 2 µA @ 62.2 V | 2 µA @ 83.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | - | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -25°C ~ 100°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | E, Axial | E, Axial | E, Axial | DO-204AH, DO-35, Axial | E, Axial | E, Axial | E, Axial | E, Axial | E, Axial |
| Supplier Device Package | - | - | - | DO-35 | - | - | - | - | - |
