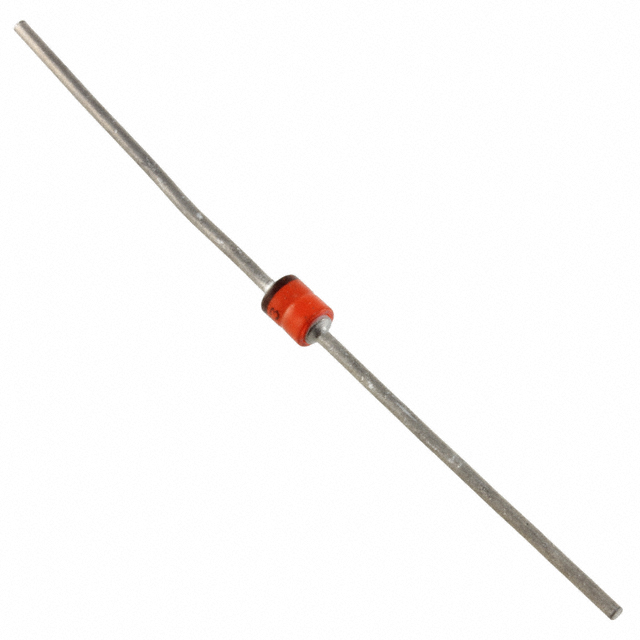

| Part Number | 1N4977US | 1N4979US | 1N4987US | 1N4967US | 1N4970US | 1N4971US | 1N4974US | 1N4975US | 1N4976US |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 62 V | 75 V | 160 V | 24 V | 33 V | 36 V | 47 V | 51 V | 56 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 42 Ohms | 55 Ohms | 350 Ohms | 5 Ohms | 10 Ohms | 11 Ohms | 25 Ohms | 27 Ohms | 35 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 47.1 V | 2 µA @ 56 V | 2 µA @ 121.6 V | 2 µA @ 18.2 V | 2 µA @ 25.1 V | 2 µA @ 27.4 V | 2 µA @ 35.8 V | 2 µA @ 38.8 V | 2 µA @ 42.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E, Axial | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | - | D-5B | D-5B | - | D-5B | D-5B | D-5B | D-5B | D-5B |
