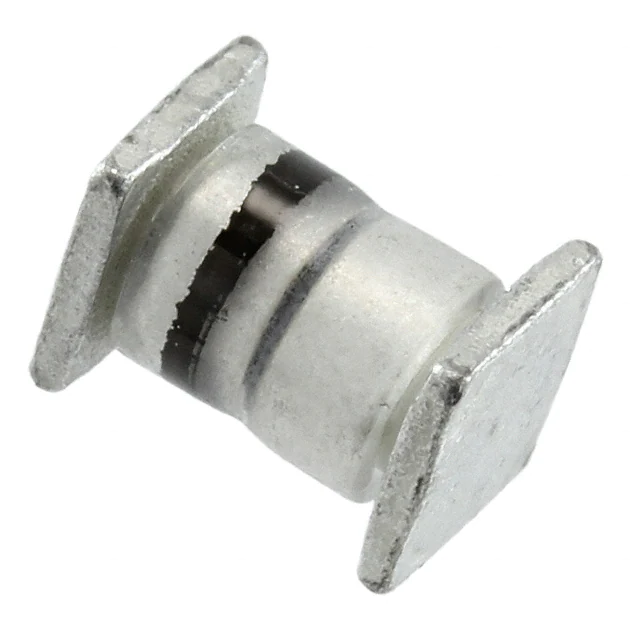

Microchip Technology-1N4976US - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N4976US	1N4996US	1N4977US	1N4979US	1N4986US	1N4966US	1N4970US	1N4971US	1N4974US	1N4975US
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	56 V	390 V	62 V	75 V	150 V	22 V	33 V	36 V	47 V	51 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Impedance (Max) (Zzt)	35 Ohms	1.8 kOhms	42 Ohms	55 Ohms	330 Ohms	5 Ohms	10 Ohms	11 Ohms	25 Ohms	27 Ohms
Current - Reverse Leakage @ Vr	2 µA @ 42.6 V	2 µA @ 297 V	2 µA @ 47.1 V	2 µA @ 56 V	2 µA @ 114 V	2 µA @ 16.7 V	2 µA @ 25.1 V	2 µA @ 27.4 V	2 µA @ 35.8 V	2 µA @ 38.8 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Through Hole	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	E-MELF	SQ-MELF, B	E, Axial	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF
Supplier Device Package	D-5B	D-5B	-	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B

Microchip Technology 1N4976US
