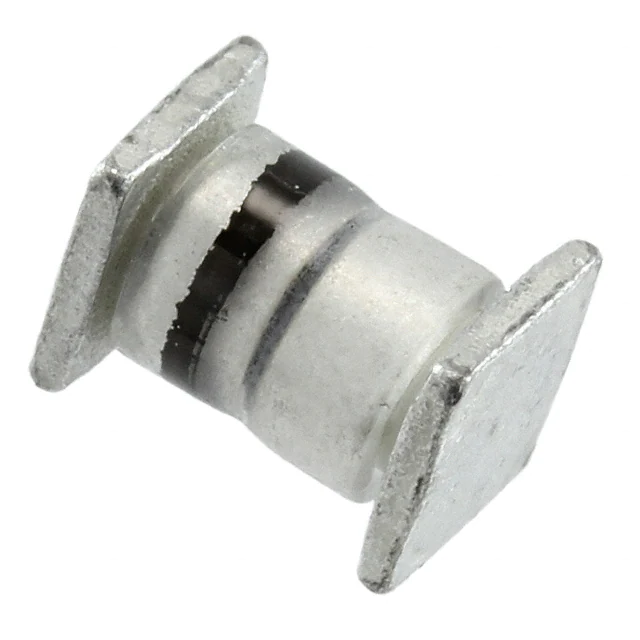

Microchip Technology-1N4970US - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N4970US	1N4971US	1N4974US	1N4975US	1N4976US	1N4977US	1N4979US	1N4980US	1N4960US
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	33 V	36 V	47 V	51 V	56 V	62 V	75 V	82 V	12 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Impedance (Max) (Zzt)	10 Ohms	11 Ohms	25 Ohms	27 Ohms	35 Ohms	42 Ohms	55 Ohms	80 Ohms	2.5 Ohms
Current - Reverse Leakage @ Vr	2 µA @ 25.1 V	2 µA @ 27.4 V	2 µA @ 35.8 V	2 µA @ 38.8 V	2 µA @ 42.6 V	2 µA @ 47.1 V	2 µA @ 56 V	2 µA @ 62.2 V	10 µA @ 9.1 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Through Hole	Surface Mount	Surface Mount	Through Hole
Package / Case	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E, Axial	E-MELF	E-MELF	E-MELF
Supplier Device Package	D-5B	D-5B	D-5B	D-5B	D-5B	-	D-5B	D-5B	D-5B

Microchip Technology 1N4970US
