Please send RFQ , we will respond immediately.

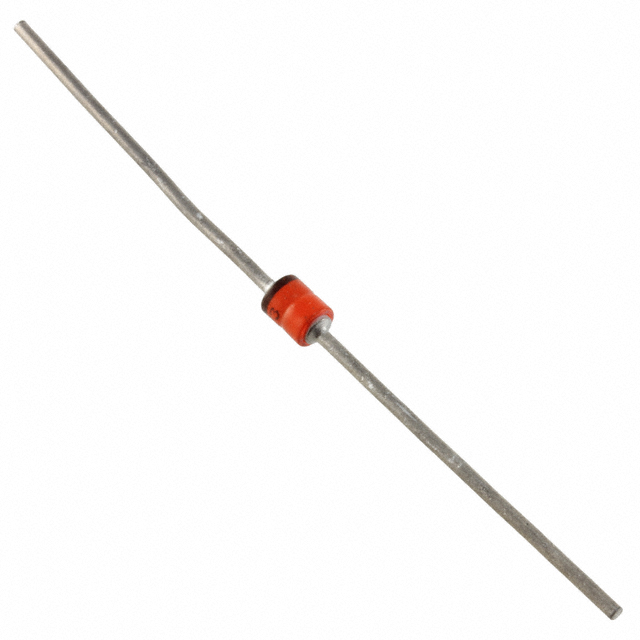

| Part Number | 1N4964 | 1N4974 | 1N4965 | 1N4968 | 1N4969 | 1N4967 | 1N4924 | 1N4954 | 1N4960 | 1N4961 | 1N4962 | 1N4963 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Solid State Inc. | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 18 V | 47 V | 20 V | 27 V | 30 V | 24 V | 19.2 V | 6.8 V | 12 V | 13 V | 15 V | 16 V |
| Tolerance | ±5% | ±4.89% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 500 mW | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 4 Ohms | 25 Ohms | 4.5 Ohms | 6 Ohms | 8 Ohms | 5 Ohms | 150 Ohms | 1 Ohms | 2.5 Ohms | 3 Ohms | 3.5 Ohms | 3.5 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 13.7 V | 2 µA @ 35.8 V | 2 µA @ 15.2 V | 2 µA @ 20.6 V | 2 µA @ 22.8 V | 2 µA @ 18.2 V | - | 150 µA @ 5.2 V | 10 µA @ 9.1 V | 10 µA @ 9.9 V | 5 µA @ 11.4 V | 5 µA @ 12.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | - | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | - | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -25°C ~ 100°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | E, Axial | SOD-57, Axial | E, Axial | E, Axial | E, Axial | E, Axial | DO-204AH, DO-35, Axial | E, Axial | E, Axial | E, Axial | E, Axial | E, Axial |
| Supplier Device Package | - | SOD-57 | - | - | - | - | DO-35 | - | - | - | - | - |
