Please send RFQ , we will respond immediately.

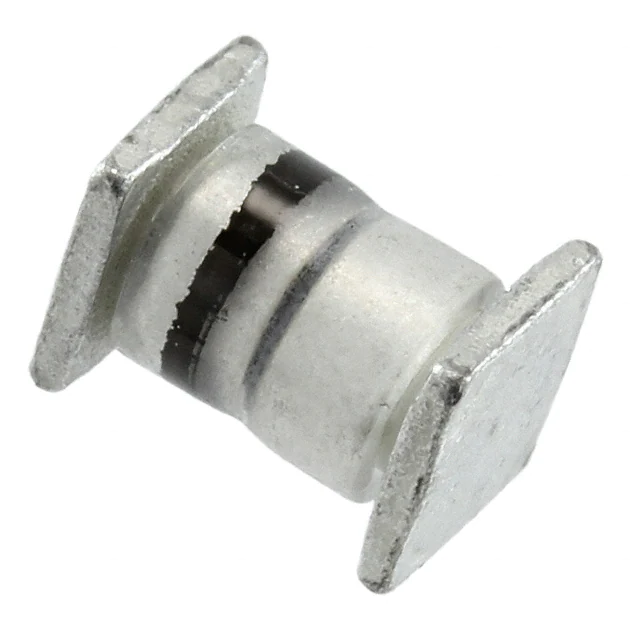

| Part Number | 1N4958US | 1N4959US | 1N4968US | 1N4988US | 1N4954US | 1N4955US |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 10 V | 11 V | 27 V | 180 V | 6.8 V | 7.5 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 2 Ohms | 2.5 Ohms | 6 Ohms | 450 Ohms | 1 Ohms | 1.5 Ohms |
| Current - Reverse Leakage @ Vr | 25 µA @ 7.6 V | 10 µA @ 8.4 V | 2 µA @ 20.6 V | 2 µA @ 136.8 V | 150 µA @ 5.2 V | 100 µA @ 5.7 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
