Please send RFQ , we will respond immediately.

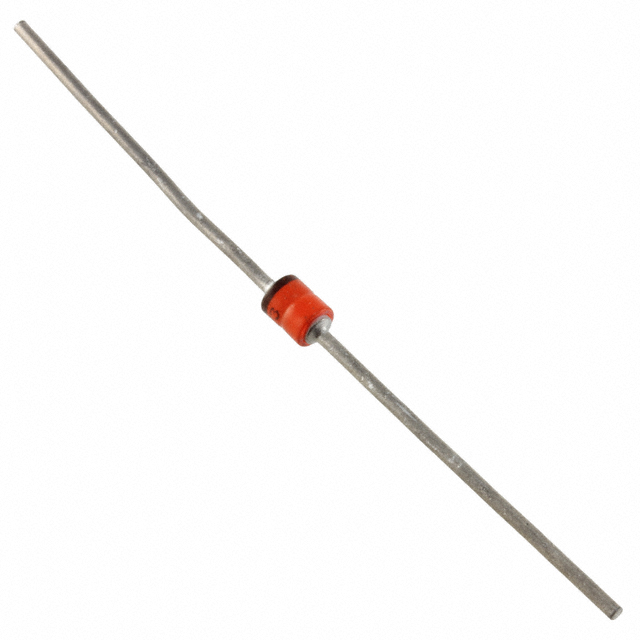

| Part Number | 1N4958 | 1N4978 | 1N4968 | 1N4918 | 1N4928 | 1N4954 | 1N4955 | 1N4956 | 1N4957 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 10 V | 68 V | 27 V | 19.2 V | 19.2 V | 6.8 V | 7.5 V | 8.2 V | 9.1 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 500 mW | 500 mW | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 2 Ohms | 50 Ohms | 6 Ohms | 600 Ohms | 75 Ohms | 1 Ohms | 1.5 Ohms | 1.5 Ohms | 2 Ohms |
| Current - Reverse Leakage @ Vr | 25 µA @ 7.6 V | 2 µA @ 51.7 V | 2 µA @ 20.6 V | - | - | 150 µA @ 5.2 V | 100 µA @ 5.7 V | 50 µA @ 6.2 V | 25 µA @ 6.9 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | - | - | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -25°C ~ 100°C | -25°C ~ 100°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | E, Axial | E, Axial | E, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | E, Axial | E, Axial | E, Axial | E, Axial |
| Supplier Device Package | - | - | - | DO-35 | DO-35 | - | - | - | - |
