Please send RFQ , we will respond immediately.

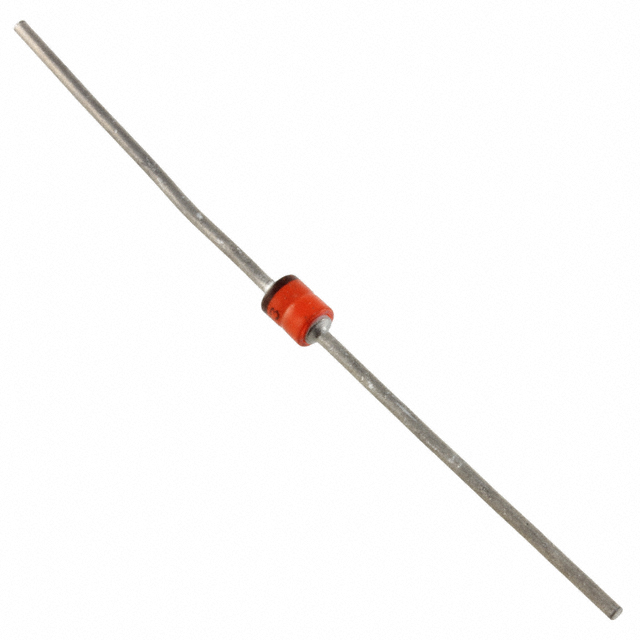

| Part Number | 1N4957 | 1N4958 | 1N4977 | 1N4967 | 1N4987 | 1N4917 | 1N4927 | 1N4954 | 1N4955 | 1N4956 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 9.1 V | 10 V | 62 V | 24 V | 160 V | 19.2 V | 19.2 V | 6.8 V | 7.5 V | 8.2 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 500 mW | 500 mW | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 2 Ohms | 2 Ohms | 42 Ohms | 5 Ohms | 350 Ohms | 600 Ohms | 75 Ohms | 1 Ohms | 1.5 Ohms | 1.5 Ohms |
| Current - Reverse Leakage @ Vr | 25 µA @ 6.9 V | 25 µA @ 7.6 V | 2 µA @ 47.1 V | 2 µA @ 18.2 V | 2 µA @ 121.6 V | - | - | 150 µA @ 5.2 V | 100 µA @ 5.7 V | 50 µA @ 6.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | - | - | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -25°C ~ 100°C | -25°C ~ 100°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | E, Axial | E, Axial | E, Axial | E, Axial | E, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | E, Axial | E, Axial | E, Axial |
| Supplier Device Package | - | - | - | - | - | DO-35 | DO-35 | - | - | - |
