Please send RFQ , we will respond immediately.

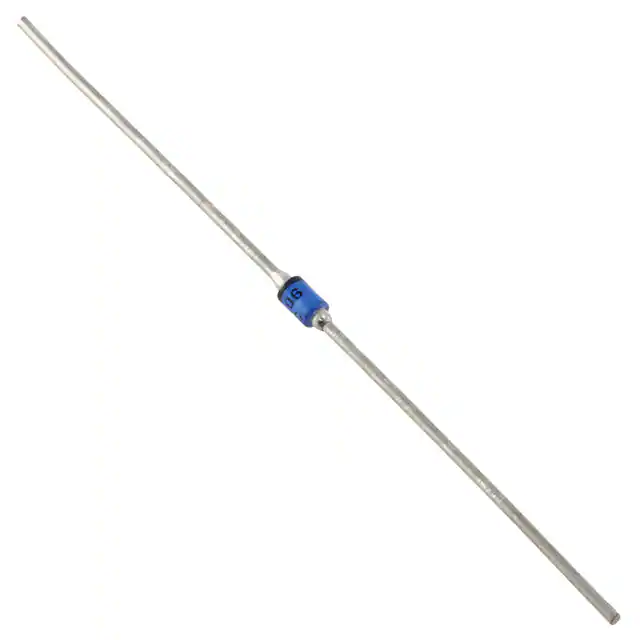

| Part Number | 1N4944 | 1N4946 | 1N4942 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 200 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A | 1.3 V @ 1 A | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns | 250 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V | 1 µA @ 600 V | 1 µA @ 200 V |
| Capacitance @ Vr, F | 35pF @ 12V, 1MHz | 25pF @ 12V, 1MHz | 45pF @ 12V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | A, Axial | A, Axial | A, Axial |
| Supplier Device Package | - | Axial | - |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
