Please send RFQ , we will respond immediately.

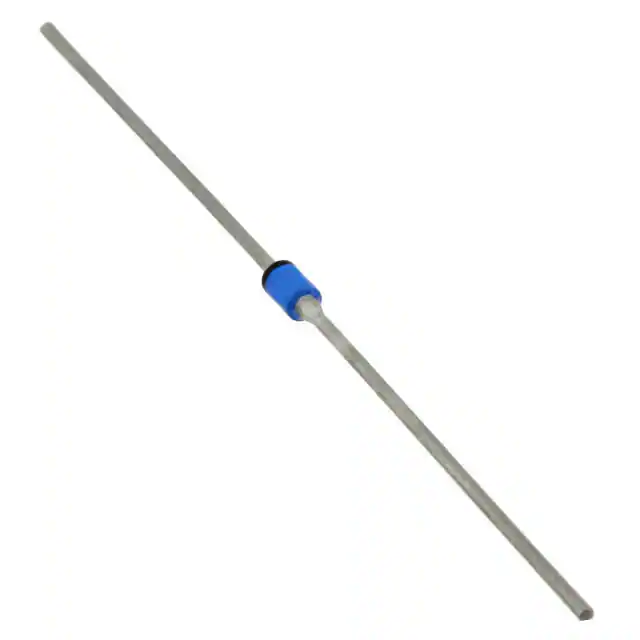

| Part Number | 1N4702/TR | 1N4703/TR | 1N4709/TR | 1N4707/TR | 1N4708/TR | 1N4706/TR | 1N4704/TR | 1N4705/TR | 1N4712/TR | 1N4700/TR | 1N4701/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 16 V | 24 V | 20 V | 22 V | 19 V | 17 V | 18 V | 28 V | 13 V | 14 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.4 V | 50 nA @ 12.1 V | 10 nA @ 18.2 V | 10 nA @ 15.2 V | 10 nA @ 16.7 V | 50 nA @ 14.4 V | 50 nA @ 12.9 V | 50 nA @ 13.6 V | 10 nA @ 21.2 V | 50 nA @ 9.8 V | 50 nA @ 10.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TA) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TA) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TA) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AH, DO-35, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AH, DO-35, Axial | DO-204AA, DO-7, Axial | DO-204AH, DO-35, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-35 (DO-204AH) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-35 (DO-204AH) | DO-7 (DO-204AA) | DO-35 (DO-204AH) | DO-7 (DO-204AA) |
