Please send RFQ , we will respond immediately.

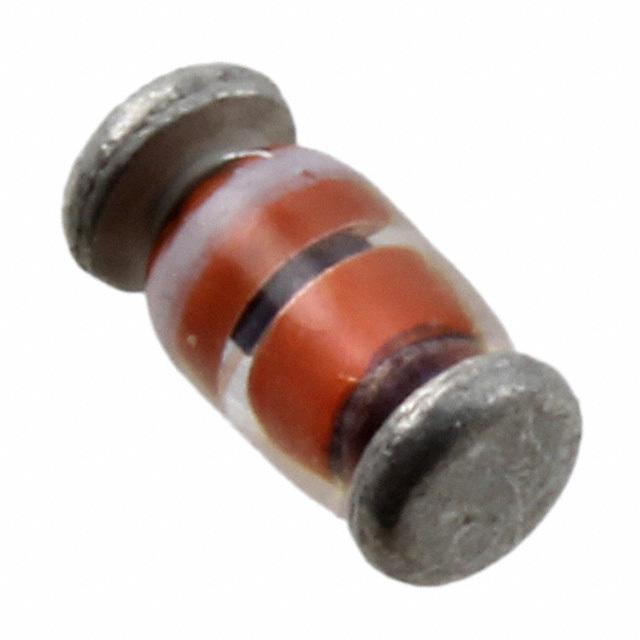

| Part Number | 1N4699UR-1 | 1N4679UR-1 | 1N4689UR-1 | 1N4690UR-1 | 1N4691UR-1 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 12 V | 2 V | 5.1 V | 5.6 V | 6.2 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 9.1 V | 5 µA @ 1 V | 10 µA @ 3 V | 10 µA @ 4 V | 10 µA @ 5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
