Please send RFQ , we will respond immediately.

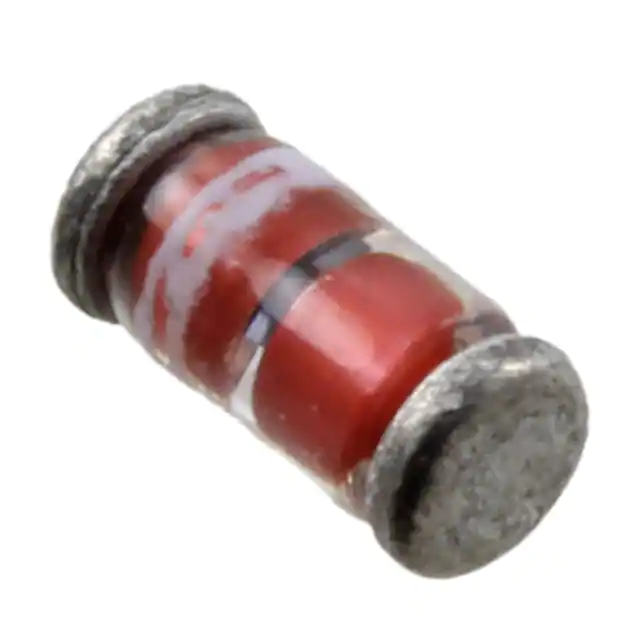

| Part Number | 1N4627UR | 1N4617UR | 1N4620UR | 1N4621UR | 1N4622UR | 1N4623UR | 1N4624UR | 1N4625UR | 1N4626UR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 6.2 V | 2.4 V | 3.3 V | 3.6 V | 3.9 V | 4.3 V | 4.7 V | 5.1 V | 5.6 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 1.2 kOhms | 1.4 kOhms | 1.65 kOhms | 1.7 kOhms | 1.65 kOhms | 1.6 kOhms | 1.55 kOhms | 1.5 kOhms | 1.4 kOhms |
| Current - Reverse Leakage @ Vr | 1 µA @ 5.7 V | 1 µA @ 1 V | 3.5 µA @ 1.5 V | 3.5 µA @ 2 V | 2.5 µA @ 2 V | 2 µA @ 2 V | 5 µA @ 3 V | 5 µA @ 3 V | 1 µA @ 5.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
