Please send RFQ , we will respond immediately.

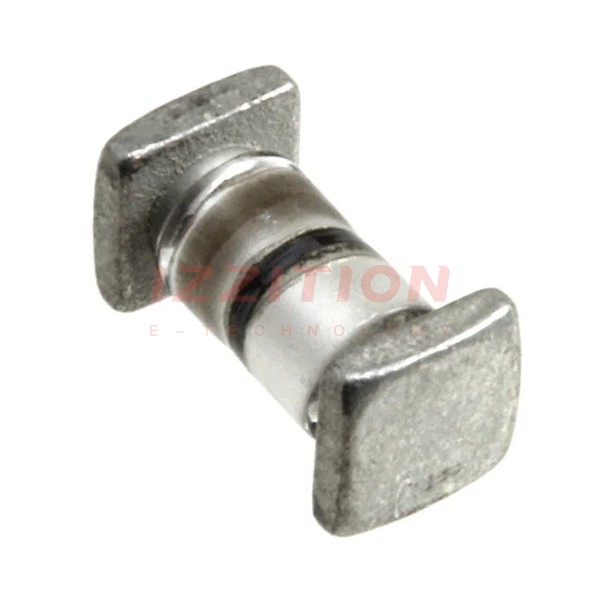

| Part Number | 1N4486US/TR | 1N4496US/TR | 1N4466US/TR | 1N4476US/TR | 1N4481US/TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 75 V | 200 V | 11 V | 30 V | 47 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 130 Ohms | 1500 Ohms | 6 Ohms | 20 Ohms | 50 Ohms |
| Current - Reverse Leakage @ Vr | 250 nA @ 60 V | 250 nA @ 160 V | 300 nA @ 8.8 V | 50 nA @ 24 V | 50 nA @ 37.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | A, SQ-MELF | A, SQ-MELF | D-5A | A, SQ-MELF | D-5A |
