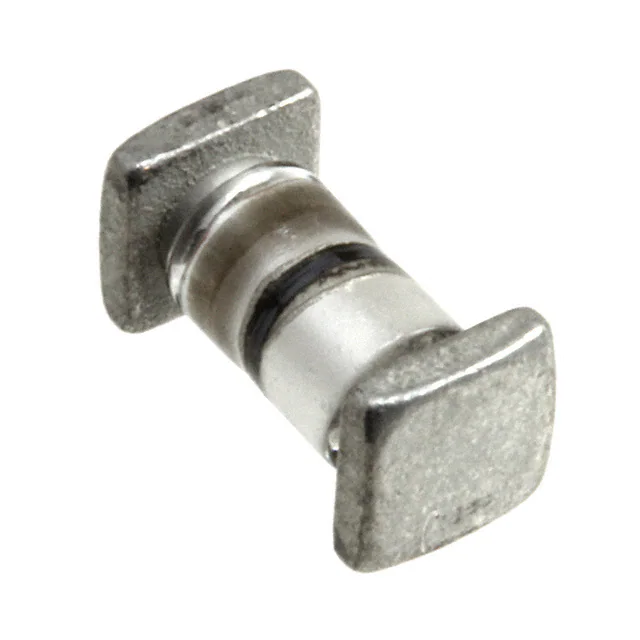

| Part Number | 1N4481US/TR | 1N4486US/TR | 1N4461US/TR | 1N4471US/TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 47 V | 75 V | 6.8 V | 18 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 50 Ohms | 130 Ohms | 2.5 Ohms | 11 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 37.6 V | 250 nA @ 60 V | 5 µA @ 4.08 V | 50 nA @ 14.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | A, SQ-MELF | A, SQ-MELF | A, SQ-MELF |
