Please send RFQ , we will respond immediately.

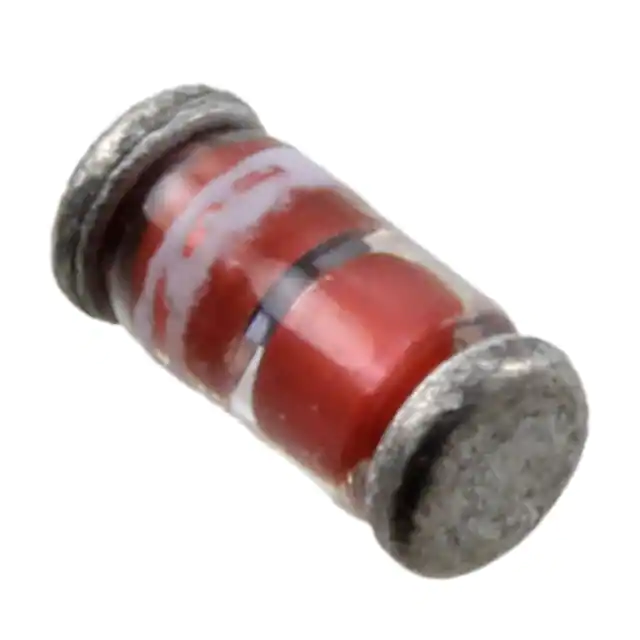

| Part Number | 1N4115UR | 1N4135UR | 1N4116UR | 1N4117UR | 1N4118UR | 1N4119UR | 1N4125UR | 1N4105UR | 1N4110UR | 1N4111UR | 1N4112UR | 1N4113UR | 1N4114UR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 100 V | 24 V | 25 V | 27 V | 28 V | 47 V | 11 V | 16 V | 17 V | 18 V | 19 V | 20 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 150 Ohms | 1.5 kOhms | 150 Ohms | 150 Ohms | 150 Ohms | 200 Ohms | 250 Ohms | 200 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 150 Ohms | 150 Ohms |
| Current - Reverse Leakage @ Vr | 10 nA @ 16.72 V | 10 nA @ 76 V | 10 nA @ 18.25 V | 10 nA @ 19 V | 10 nA @ 20.45 V | 10 nA @ 21.28 V | 10 nA @ 35.75 V | 50 nA @ 8.44 V | 50 nA @ 12.15 V | 50 nA @ 12.92 V | 50 nA @ 13.67 V | 50 nA @ 14.44 V | 10 nA @ 15.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
