Please send RFQ , we will respond immediately.

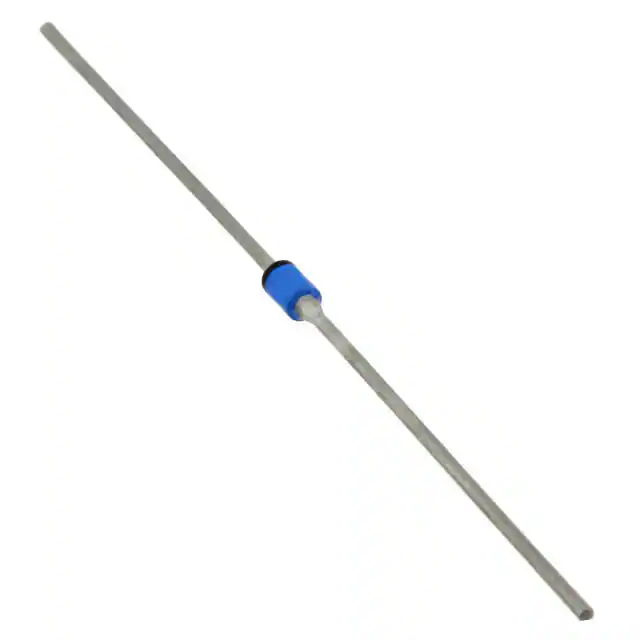

| Part Number | 1N4114/TR | 1N4118/TR | 1N4134/TR | 1N4119/TR | 1N4117/TR | 1N4115/TR | 1N4116/TR | 1N4110/TR | 1N4111/TR | 1N4112/TR | 1N4113/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 20 V | 27 V | 91 V | 28 V | 25 V | 22 V | 24 V | 16 V | 17 V | 18 V | 19 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 400 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 400 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 150 Ohms | 150 Ohms | 1.2 Ohms | 200 Ohms | 150 Ohms | 150 Ohms | 150 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 150 Ohms |
| Current - Reverse Leakage @ Vr | 10 nA @ 15.2 V | 10 nA @ 20.45 V | 10 nA @ 69.16 V | 10 nA @ 21.28 V | 10 nA @ 19 V | 10 nA @ 16.72 V | 10 nA @ 18.25 V | 50 nA @ 12.15 V | 50 nA @ 12.92 V | 50 nA @ 13.67 V | 50 nA @ 14.44 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial | DO-213AA | DO-204AA, DO-7, Axial | DO-204AA, DO-7, Axial |
| Supplier Device Package | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-7 (DO-204AA) | DO-213AA | DO-7 (DO-204AA) | DO-7 (DO-204AA) |
