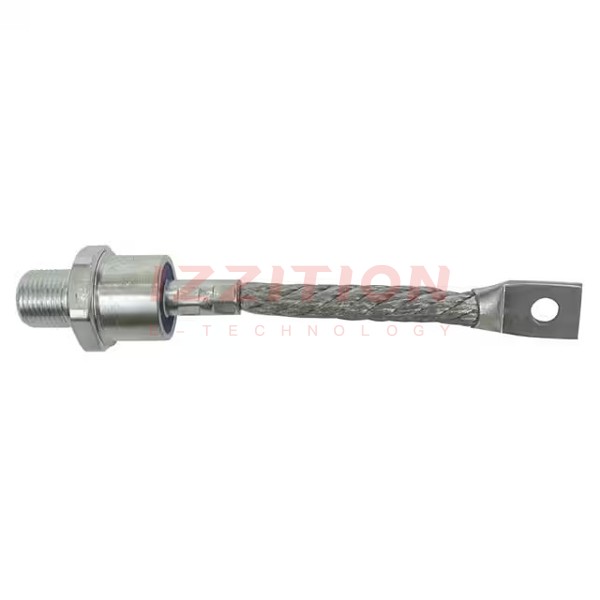

| Part Number | 1N4045 | 1N4045R |
|---|---|---|
| Manufacturer | Microchip Technology | Powerex Inc. |
| Product Status | Active | Active |
| Diode Type | Standard | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V |
| Current - Average Rectified (Io) | 275A | 275A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 300 A | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 15 mA @ 100 V | 15 mA @ 100 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Stud Mount | Chassis, Stud Mount |
| Package / Case | DO-205AB, DO-9, Stud | DO-205AB, DO-9, Stud |
| Supplier Device Package | DO-205AB, DO-9 | DO-205AB, DO-9 |
| Operating Temperature - Junction | -65°C ~ 190°C | -65°C ~ 190°C |
