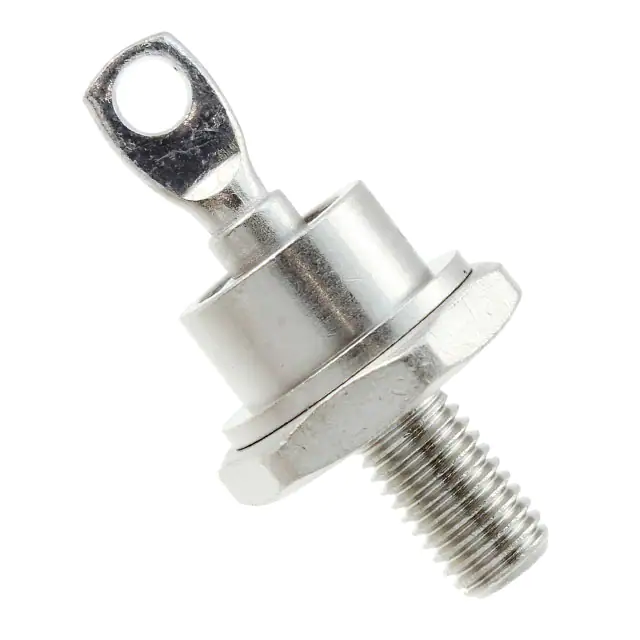

| Part Number | 1N3338A | 1N3339A | 1N3348A | 1N3338R | 1N3338RA | 1N3338B | 1N3328A | 1N3330A | 1N3331A | 1N3332A | 1N3333A | 1N3334A | 1N3335A | 1N3336A | 1N3337A | 1N3338 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. | Solid State Inc. | Microchip Technology | Solid State Inc. | Solid State Inc. | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Solid State Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 82 V | 91 V | 220 V | 82 V | 82 V | 82 V | 43 V | 47 V | 50 V | 51 V | 52 V | 56 V | 62 V | 68 V | 75 V | 82 V |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±5% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% |
| Power - Max | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W |
| Impedance (Max) (Zzt) | 11 Ohms | 15 Ohms | 85 Ohms | 11 Ohms | 11 Ohms | 11 Ohms | 4.5 Ohms | 5 Ohms | 5 Ohms | 5.2 Ohms | 5.5 Ohms | 6 Ohms | 7 Ohms | 8 Ohms | 9 Ohms | 11 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 62.2 V | 10 µA @ 69.2 V | 10 µA @ 121.6 V | - | 5 µA @ 59 V | 5 µA @ 62.2 V | 10 µA @ 32.7 V | 5 µA @ 33.8 V | 5 µA @ 36 V | 10 µA @ 38.8 V | 10 µA @ 42.6 V | 10 µA @ 42.6 V | 10 µA @ 47.1 V | 10 µA @ 51.7 V | 10 µA @ 56 V | - |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 |
