Please send RFQ , we will respond immediately.

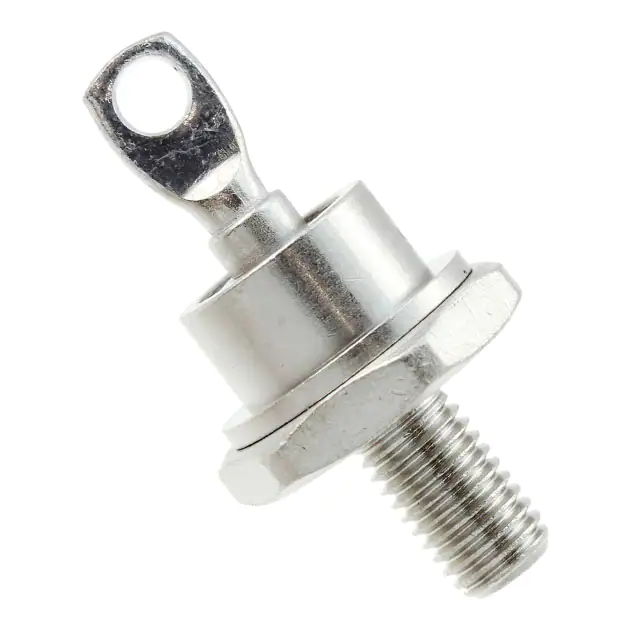

| Part Number | 1N3328A | 1N3328B | 1N3329A | 1N3338A | 1N3328R | 1N3328RA | 1N3318A | 1N3320A | 1N3321A | 1N3322A | 1N3323A | 1N3324A | 1N3325A | 1N3326A | 1N3327A | 1N3328 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Solid State Inc. | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. | Solid State Inc. | Microchip Technology | Microchip Technology | Solid State Inc. | Solid State Inc. | Solid State Inc. | Microchip Technology | Microchip Technology | Microchip Technology | Solid State Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 43 V | 43 V | 45 V | 82 V | 43 V | 43 V | 19 V | 22 V | 24 V | 25 V | 27 V | 30 V | 33 V | 36 V | 39 V | 43 V |
| Tolerance | ±10% | ±5% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% |
| Power - Max | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W |
| Impedance (Max) (Zzt) | 4.5 Ohms | 4.5 Ohms | 4.5 Ohms | 11 Ohms | 4.5 Ohms | 4.5 Ohms | 2.2 Ohms | 2.5 Ohms | 2.6 Ohms | 2.7 Ohms | 2.8 Ohms | 3 Ohms | 3.2 Ohms | 3.5 Ohms | 4 Ohms | 4.5 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 32.7 V | 5 µA @ 32.7 V | 10 µA @ 32.7 V | 10 µA @ 62.2 V | - | 5 µA @ 31 V | 5 µA @ 13.7 V | 10 µA @ 16.7 V | 10 µA @ 18.2 V | 5 µA @ 18 V | 5 µA @ 19.4 V | 5 µA @ 21.6 V | 10 µA @ 25.1 V | 10 µA @ 27.4 V | 10 µA @ 29.7 V | - |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C (TJ) |
| Mounting Type | Chassis, Stud Mount | Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 |
