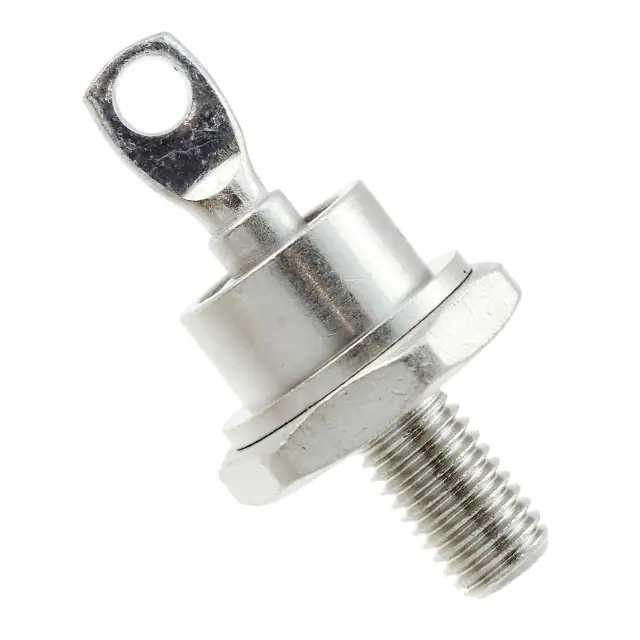

| Part Number | 1N3308RB | 1N3309RB | 1N3318RB | 1N3305RB | 1N3306RB | 1N3307RB | 1N3308B | 1N3308R | 1N3308RA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Solid State Inc. | Solid State Inc. | Solid State Inc. | Solid State Inc. | Microchip Technology | Solid State Inc. | Solid State Inc. | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 9.1 V | 10 V | 19 V | 6.8 V | 7.5 V | 8.2 V | 9.1 V | 9.1 V | 9.1 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±20% | ±10% |
| Power - Max | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W | 50 W |
| Impedance (Max) (Zzt) | 0.5 Ohms | 0.6 Ohms | 2.2 Ohms | 0.2 Ohms | 0.3 Ohms | 0.4 Ohms | 0.5 Ohms | 0.5 Ohms | 0.5 Ohms |
| Current - Reverse Leakage @ Vr | 25 µA @ 6.1 V | 10 µA @ 6.7 V | 5 µA @ 14.4 V | 150 µA @ 4.5 V | 75 µA @ 5 V | 50 µA @ 5.4 V | 25 µA @ 6.1 V | - | 25 µA @ 6.1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A | 1.5 V @ 10 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C |
| Mounting Type | Chassis, Stud Mount | Stud Mount | Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount | Stud Mount | Stud Mount | Chassis, Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 | DO-5 |
