| Part Number | XR76208EL-F | XR76208EL-Q | XR76108EL-F | XR76203EL-F | XR76205EL-F |
|---|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 5V | 5V | 4.5V | 5V | 5V |
| Voltage - Input (Max) | 40V | 40V | 22V | 4V | 40V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 40V | 40V | 18V | 40V | 40V |
| Current - Output | 8A | 8A | 8A | 3A | 5A |
| Frequency - Switching | 100kHz ~ 800kHz | 100kHz ~ 800kHz | 200kHz ~ 800kHz | 100kHz ~ 800kHz | 100kHz ~ 800kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

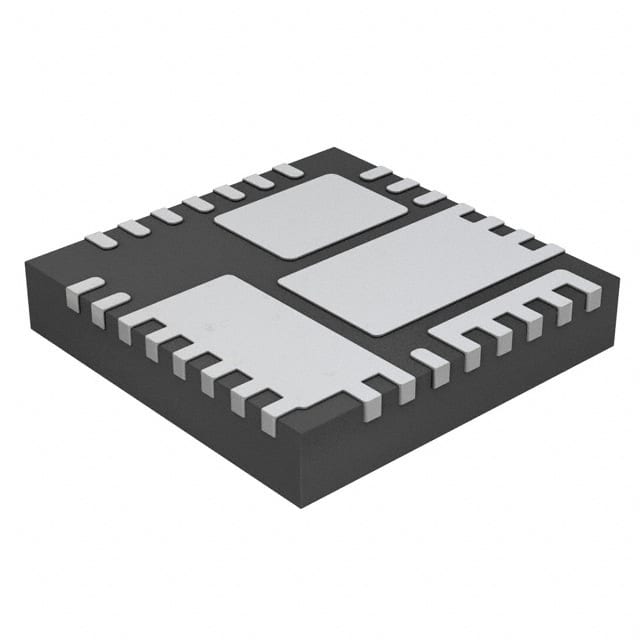

| Package / Case | 30-PowerVFQFN | 30-PowerVFQFN | 30-PowerVFQFN | 30-PowerVFQFN | 30-PowerVFQFN |
| Supplier Device Package | 30-QFN (5x5) | 30-QFN (5x5) | 30-QFN (5x5) | 30-QFN (5x5) | 30-QFN (5x5) |
