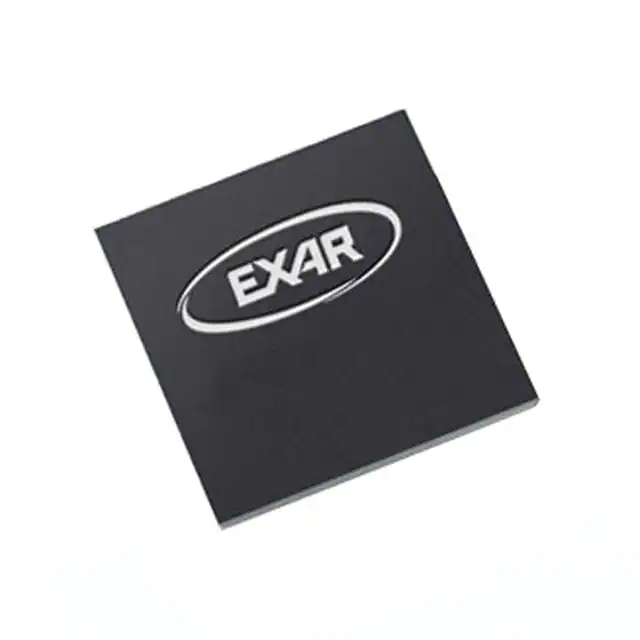

| Part Number | XR76112ELMTR-F | XR76112ELTR-F | XR76115ELMTR-F | XR76117ELMTR-F |
|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 22V | 22V | 22V | 22V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 18V | 18V | 18V | 22V |
| Current - Output | 12A | 12A | 15A | 15A |
| Frequency - Switching | 200kHz ~ 800kHz | 200kHz ~ 800kHz | 200kHz ~ 800kHz | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-PowerVFQFN | 30-PowerVFQFN | 37-PowerVFQFN | 16-PowerVQFN |
| Supplier Device Package | 30-QFN (5x5) | 30-QFN (5x5) | 37-QFN (6x6) | 16-QFN (5x6) |
