| Part Number | SPX3819R2-L-1-8 | SPX3819R2-L-1-2 |
|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.7V @ 500mA | 0.7V @ 500mA |
| Current - Output | 500mA | 500mA |
| Current - Quiescent (Iq) | 190 µA | 190 µA |
| Current - Supply (Max) | 30 mA | 30 mA |
| PSRR | - | - |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

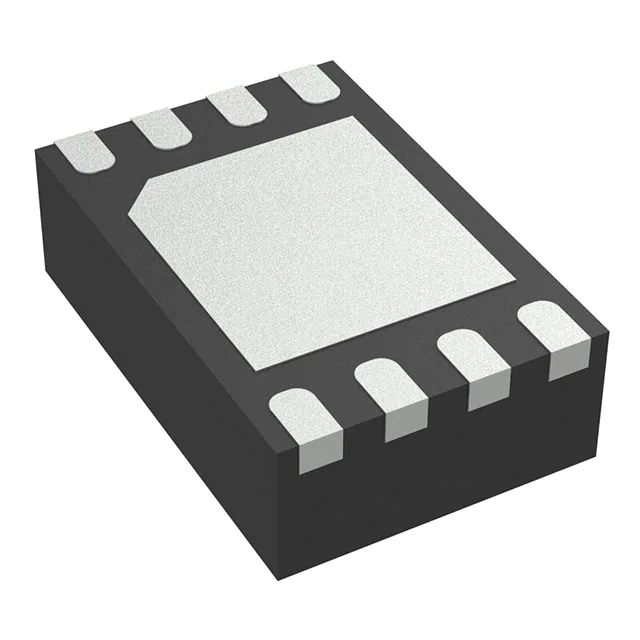

| Package / Case | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) | 8-DFN (2x3) |
