| Part Number | SPX29302T5-L/MTR | SPX29302T5-L/TR | SPX29502T5-L/MTR |
|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.24V |
| Voltage - Output (Max) | 16V | 16V | 16V |
| Voltage Dropout (Max) | 0.8V @ 3A | 0.8V @ 3A | 0.8V @ 5A |
| Current - Output | 3A | 3A | 5A |
| Current - Quiescent (Iq) | - | - | - |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Reverse Polarity, Transient Voltage | Over Current, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

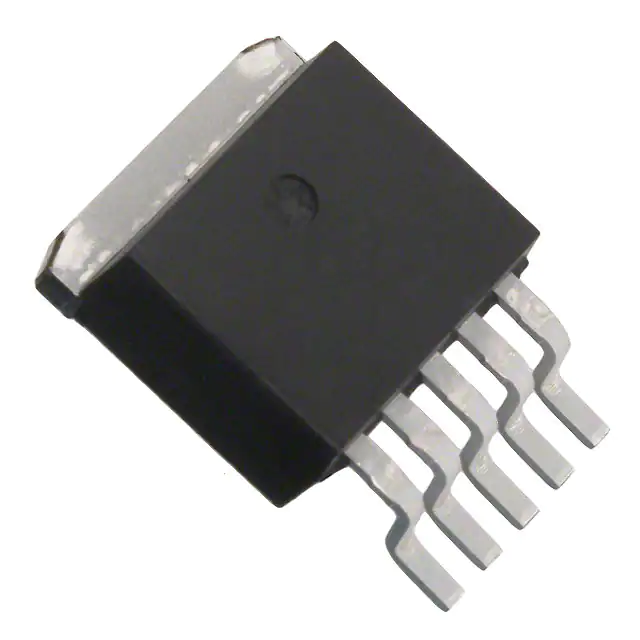

| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 | TO-263-5 |
