| Part Number | SP6260GEK-L/TR | SP6260HEK-L/TR | SP6260AEK-L/TR | SP6260BEK-L/TR | SP6260CEK-L/TR | SP6260DEK-L/TR | SP6260EEK-L/TR | SP6260FEK-L/TR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | 1.2V | 1.5V | 1.8V | 2.5V | 2.8V | 3V | 3.2V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 200mA | 0.9V @ 200mA | 0.6V @ 200mA | 0.5V @ 200mA | 0.5V @ 200mA | 0.5V @ 200mA | 0.5V @ 200mA | 0.5V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - |
| PSRR | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) | 70dB (10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

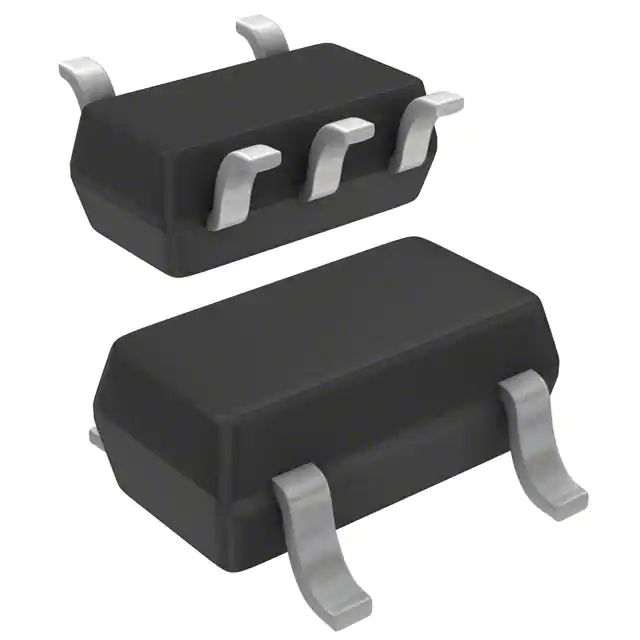

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
