| Part Number | SP6203ER-L/TR | SP6205ER-L/TR | SP6201ER-L/TR | SP6203ER-L/MTR |
|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Obsolete | Active | Obsolete | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 2.5V | 1.25V |
| Voltage - Output (Max) | 5.2V | 5V | 6V | 5.2V |
| Voltage Dropout (Max) | 0.3V @ 300mA | 0.5V @ 500mA | 0.5V @ 200mA | 0.5V @ 500mA |
| Current - Output | 300mA | 500mA | 200mA | 500mA |
| Current - Quiescent (Iq) | 100 µA | 100 µA | 1 µA | 100 µA |
| Current - Supply (Max) | 330 µA | 490 µA | 400 µA | 490 µA |
| PSRR | 67dB (1kHz) | 67dB (1kHz) | 78dB ~ 40dB (100Hz ~ 400Hz) | 67dB (1kHz) |
| Control Features | Enable | Enable | Enable | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

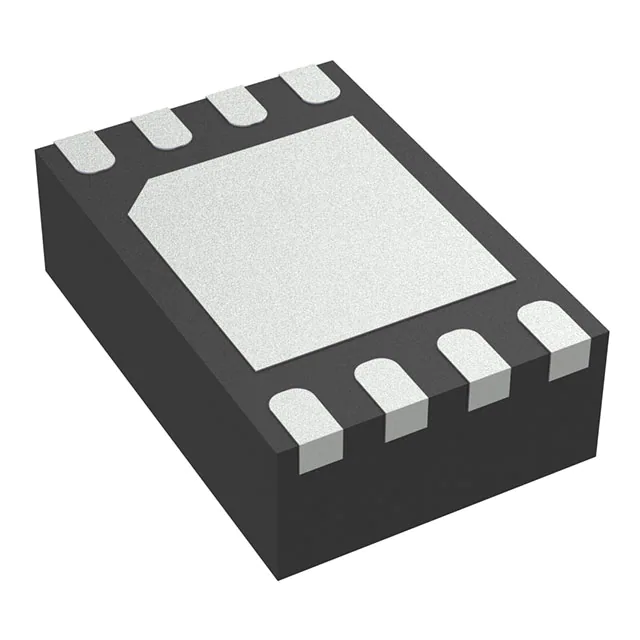

| Package / Case | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) |
