| Part Number | SP6201EM5-L-2-5 | SP6203EM5-L-2-5 | SP6205EM5-L-2-5 | SP6201EM5-L-2-85 | SP6201EM5-L-1-5 |
|---|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 5.5V | 5.5V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V | 2.85V | 1.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | 0.5V @ 200mA | - |
| Current - Output | 200mA | 300mA | 500mA | 200mA | 200mA |
| Current - Quiescent (Iq) | - | 100 µA | 100 µA | 45 µA | 45 µA |
| Current - Supply (Max) | - | 330 µA | 490 µA | 500 µA | 500 µA |
| PSRR | 78dB ~ 40dB (100Hz ~ 400Hz) | 67dB (1kHz) | 67dB (1kHz) | 78dB ~ 40dB (100Hz ~ 400Hz) | 78dB ~ 40dB (100Hz ~ 400Hz) |
| Control Features | Enable | Enable | Enable | Current Limit, Enable, Power Good, Reset Output | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

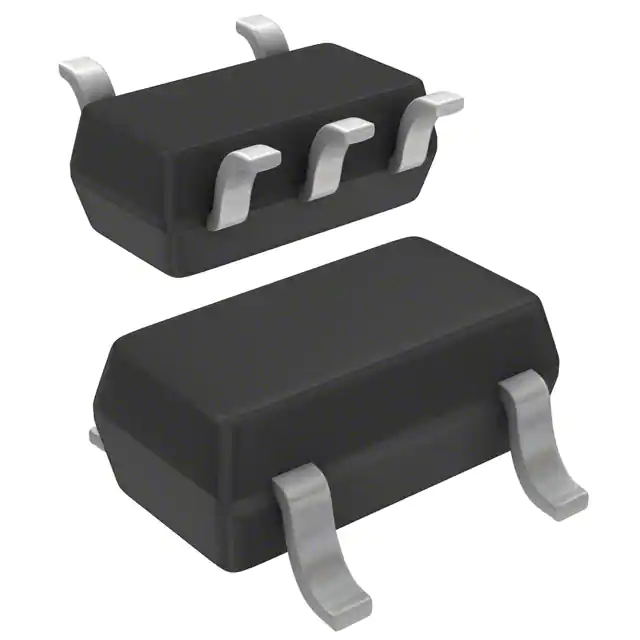

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
