| Part Number | CLC1006IST5X | CLC1007IST5X | CLC1008IST5X | CLC1009IST5X | CLC1606IST5X | CLC1003IST5X | CLC1005IST5X |
|---|---|---|---|---|---|---|---|
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Voltage Feedback | Voltage Feedback | General Purpose | Voltage Feedback | Current Feedback | Voltage Feedback | Voltage Feedback |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | - | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1400V/µs | 220V/µs | 50V/µs | 27V/µs | 3300V/µs | 12V/µs | 145V/µs |
| Gain Bandwidth Product | - | 250 MHz | 33 MHz | 20 MHz | - | 35 MHz | 90 MHz |
| -3db Bandwidth | 500 MHz | 85 MHz | 35 MHz | 18 MHz | 1.3 GHz | 25 MHz | 260 MHz |
| Current - Input Bias | 3.2 µA | 1.3 µA | 1.2 µA | 370 nA | 7 µA | 300 nA | 3 µA |
| Voltage - Input Offset | 10 mV | 500 µV | 1 mV | 1.5 mV | 500 µV | 50 µV | 1.4 mV |
| Current - Supply | 5.5mA | 2.6mA | 505µA | 208µA | 7.5mA | 2.2mA | 4.2mA |
| Current - Output / Channel | 200 mA | 100 mA | 15 mA | 8.5 mA | 280 mA | 80 mA | 55 mA |
| Voltage - Supply Span (Min) | 4.5 V | 2.7 V | 2.5 V | 2.5 V | 4.5 V | 2.5 V | 2.5 V |
| Voltage - Supply Span (Max) | 12 V | 12.6 V | 5.5 V | 5.5 V | 12 V | 12 V | 5.5 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

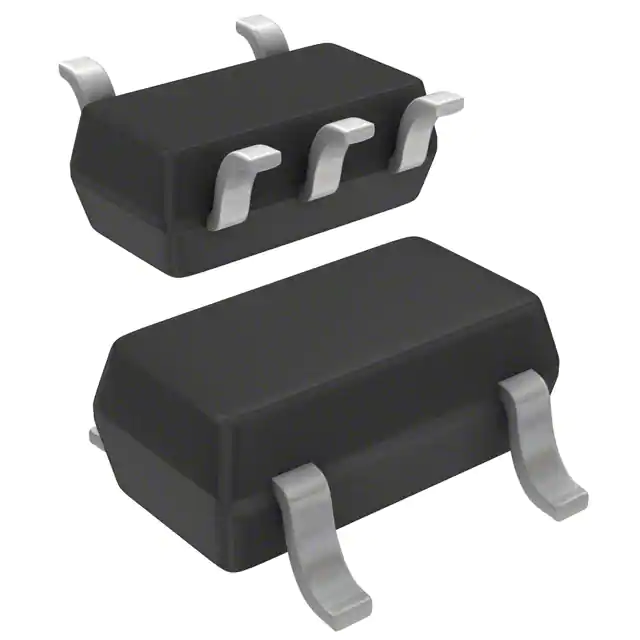

| Package / Case | SC-74A, SOT-753 | SOT-23-5 Thin, TSOT-23-5 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | TSOT-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
