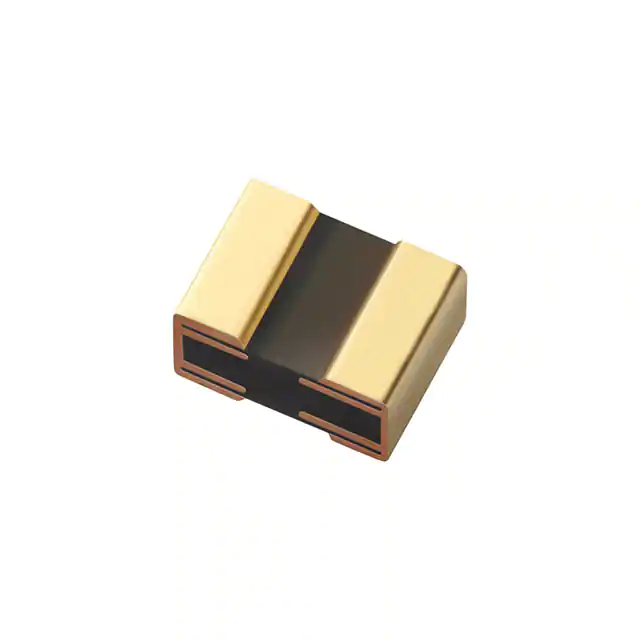

| Part Number | ZEPTOSMDC0011F | ZEPTOSMDC0015F |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 13V | 13V |
| Current - Max | 82 mA | 200 mA |
| Current - Hold (Ih) (Max) | 11 mA | 15 mA |
| Current - Trip (It) | 80 mA | 80 mA |
| Time to Trip | 20 ms | 20 ms |
| Resistance - Initial (Ri) (Min) | 10 Ohms | 10 Ohms |
| Resistance - Post Trip (R1) (Max) | 290 Ohms | 150 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD |
| Size / Dimension | 0.024" L x 0.018" W (0.60mm x 0.45mm) | 0.024" L x 0.018" W (0.60mm x 0.45mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Lead Spacing | - | - |
