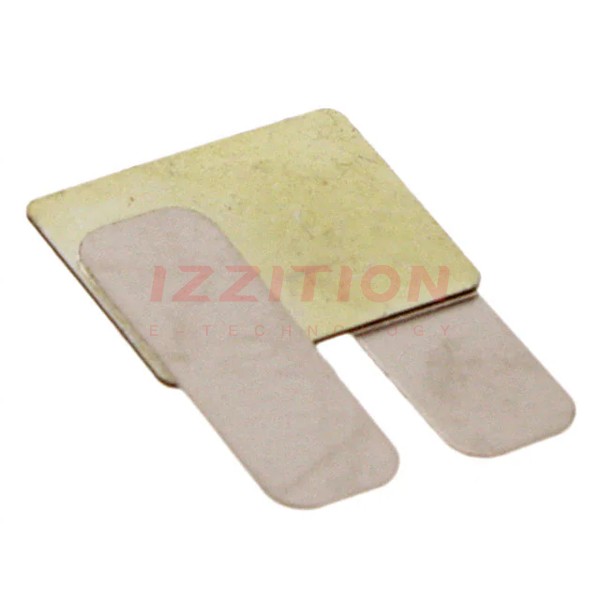

| Part Number | VLP270XXUF | VLP270XUF |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Discontinued at Digi-Key |
| Type | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V |
| Current - Max | 60 A | 60 A |
| Current - Hold (Ih) (Max) | 2.7 A | 2.7 A |
| Current - Trip (It) | 6.5 A | 6.5 A |
| Time to Trip | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 12 mOhms | 12 mOhms |
| Resistance - Post Trip (R1) (Max) | 36 mOhms | 36 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | User Defined | User Defined |
| Package / Case | Strap | Strap |
| Size / Dimension | 0.866" L x 0.201" W (22.00mm x 5.10mm) | 0.866" L x 0.201" W (22.00mm x 5.10mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.032" (0.80mm) | 0.032" (0.80mm) |
| Lead Spacing | - | - |
