V320LS20A
  • Share:

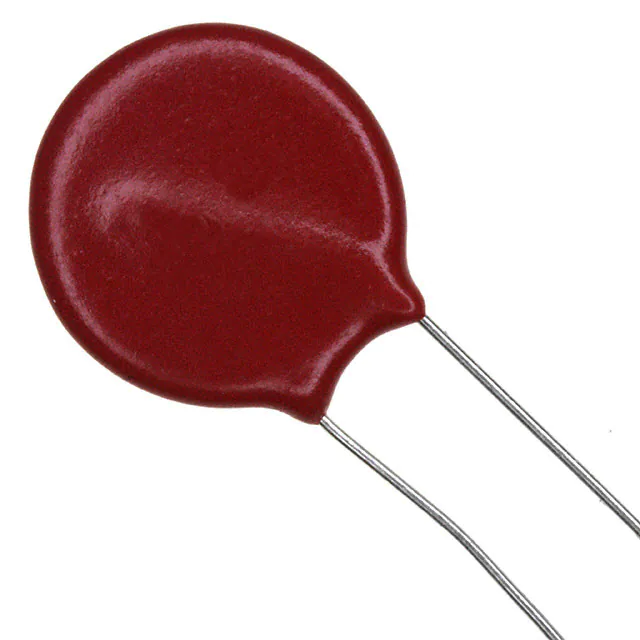

Littelfuse Inc. V320LS20A

Manufacturer No:
V320LS20A
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
V320LS20A Datasheet
ECAD Model:
-
Description:
VARISTOR 510V 4.5KA DISC 14MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Maximum AC Volts:320 V
Maximum DC Volts:420 V
Varistor Voltage (Min):459 V
Varistor Voltage (Typ):510 V
Varistor Voltage (Max):561 V
Current - Surge:4.5 kA
Energy:80J
Number of Circuits:1
Capacitance @ Frequency:380 pF @ 1 MHz
Operating Temperature:-55°C ~ 85°C (TA)
Features:-
Mounting Type:Through Hole
Package / Case:Disc 14mm
0 Remaining View Similar

In Stock

-
178

Please send RFQ , we will respond immediately.
