V22ZC1P
  • Share:

Littelfuse Inc. V22ZC1P

Manufacturer No:
V22ZC1P
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
V22ZC1P Datasheet
ECAD Model:
-
Description:

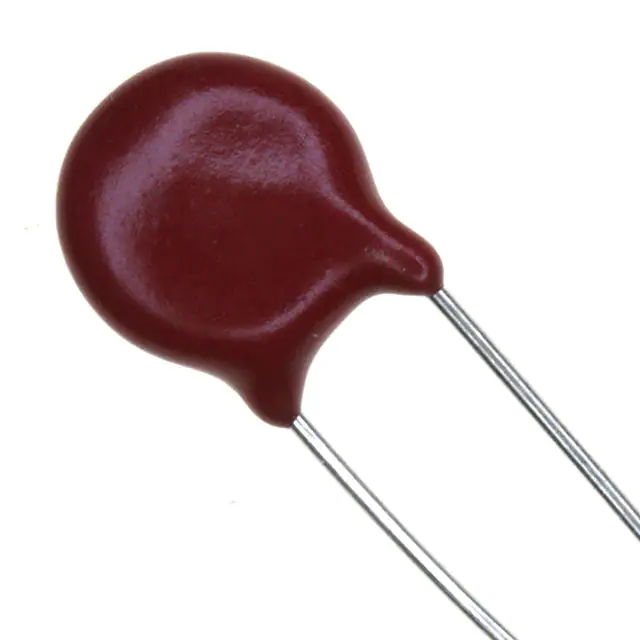

VARISTOR 22V 250A DISC 7MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Maximum AC Volts:14 V
Maximum DC Volts:18 V
Varistor Voltage (Min):19.8 V
Varistor Voltage (Typ):22 V
Varistor Voltage (Max):24.2 V
Current - Surge:250 A
Energy:0.9J
Number of Circuits:1
Capacitance @ Frequency:2375 pF @ 1 MHz
Operating Temperature:-55°C ~ 85°C (TA)
Features:-
Mounting Type:Through Hole
Package / Case:Disc 7mm
0 Remaining View Similar

In Stock

$0.14
1,458

Please send RFQ , we will respond immediately.
