V14P50PL2T7X2855
  • Share:

Littelfuse Inc. V14P50PL2T7X2855

Manufacturer No:
V14P50PL2T7X2855
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
V14P50PL2T7X2855 Datasheet
ECAD Model:
-
Description:

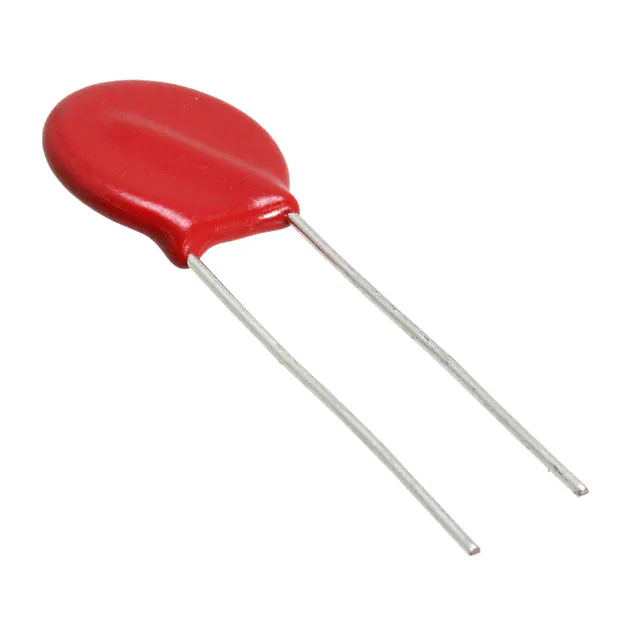

RADIAL VARISTOR 14MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Maximum AC Volts:50 V
Maximum DC Volts:65 V
Varistor Voltage (Min):73.8 V
Varistor Voltage (Typ):82 V
Varistor Voltage (Max):90.2 V
Current - Surge:6.5 kA
Energy:40J
Number of Circuits:1
Capacitance @ Frequency:3000 pF @ 1 MHz
Operating Temperature:-40°C ~ 125°C (TA)
Features:-
Mounting Type:Through Hole
Package / Case:Disc 14mm
0 Remaining View Similar

In Stock

$0.37
837

Please send RFQ , we will respond immediately.
