V07X150E
  • Share:

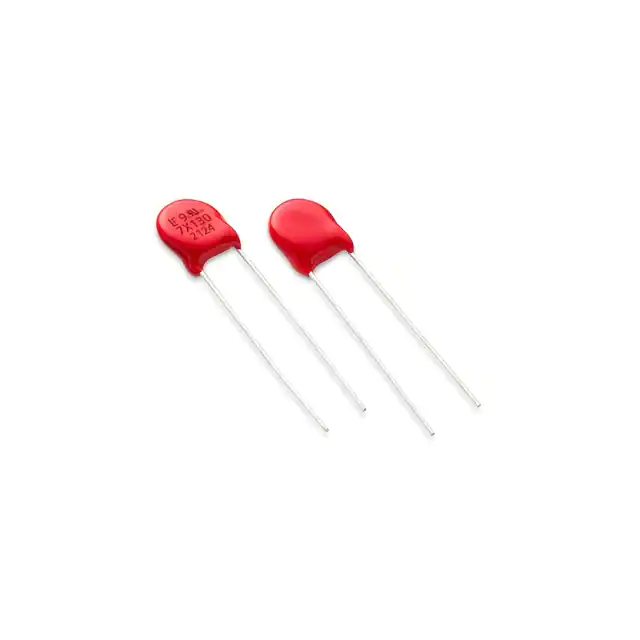

Littelfuse Inc. V07X150E

Manufacturer No:
V07X150E
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
V07X150E Datasheet
ECAD Model:
-
Description:
VARISTOR 240V 2.5KA DISC 9MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Maximum AC Volts:150 V
Maximum DC Volts:200 V
Varistor Voltage (Min):216 V
Varistor Voltage (Typ):240 V
Varistor Voltage (Max):264 V
Current - Surge:2.5 kA
Energy:24J
Number of Circuits:1
Capacitance @ Frequency:230 pF @ 1 kHz
Operating Temperature:-40°C ~ 125°C (TA)
Features:-
Mounting Type:Through Hole
Package / Case:Disc 7mm
0 Remaining View Similar

In Stock

$0.11
4,636

Please send RFQ , we will respond immediately.
