TSV250-184F-2
  • Share:

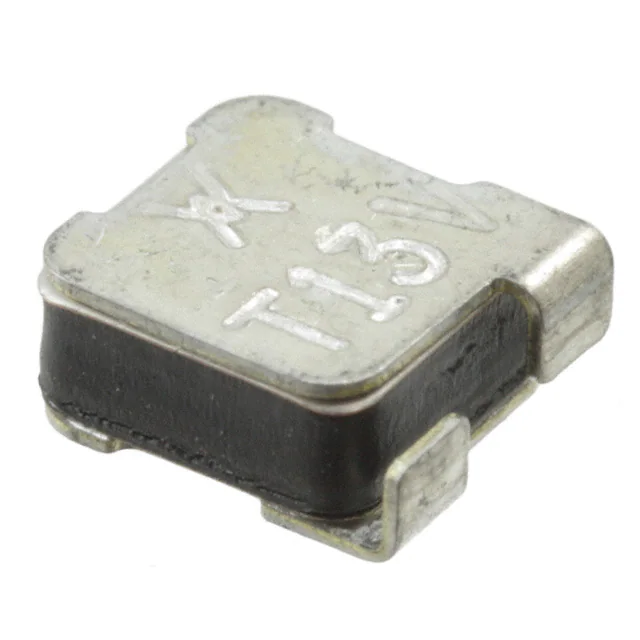

Littelfuse Inc. TSV250-184F-2

Manufacturer No:
TSV250-184F-2
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
TSV250-184F-2 Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 100V 184MA 2SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:100V (250V Int)
Current - Max:10 A
Current - Hold (Ih) (Max):184 mA
Current - Trip (It):690 mA
Time to Trip:500 ms
Resistance - Initial (Ri) (Min):1.2 Ohms
Resistance - Post Trip (R1) (Max):4 Ohms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:2-SMD
Size / Dimension:0.240" L x 0.272" W (6.10mm x 6.90mm)
Height - Seated (Max):-
Thickness (Max):0.126" (3.20mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

-
513

Please send RFQ , we will respond immediately.
