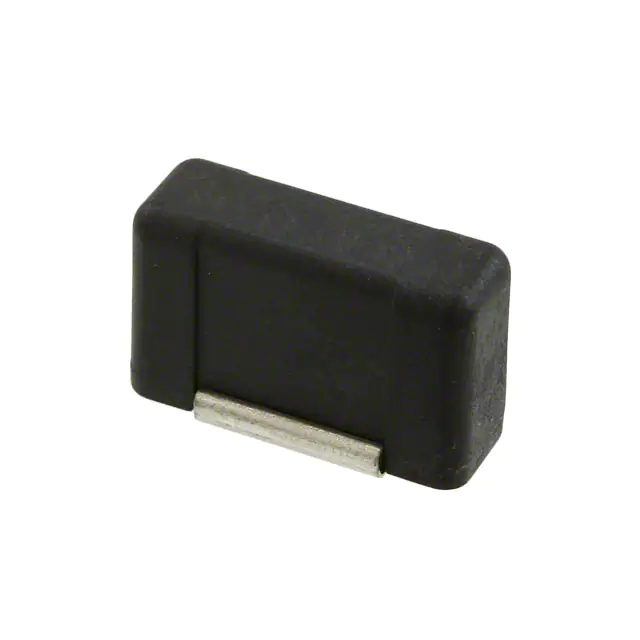

| Part Number | TS600-400F-2 | TSM600-400F-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 60V (600V Int) | 250V (600V Int) |
| Current - Max | 60 A | 60 A |
| Current - Hold (Ih) (Max) | 400 mA | 400 mA |
| Current - Trip (It) | 1 A | 1 A |
| Time to Trip | 14 s | 14 s |
| Resistance - Initial (Ri) (Min) | 500 mOhms | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 2 Ohms | 2 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 4-SMD |
| Size / Dimension | 0.742" L x 0.305" W (18.85mm x 7.75mm) | 0.681" L x 0.425" W (17.30mm x 10.80mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.484" (12.30mm) | 0.451" (11.45mm) |
| Lead Spacing | - | - |
