Littelfuse Inc.-TRU2 - Time Delay Relays Product Specifications and Latest Quotes

Mounting Type:	Socketable
Relay Type:	Mechanical Relay
Function:	Programmable (Multi-Function)
Circuit:	SPDT (1 Form C)
Delay Time:	0.1 Sec ~ 1000 Min
Contact Rating @ Voltage:	10A @ 120/240VAC
Voltage - Supply:	19 ~ 264VAC, 19 ~ 30VDC
Termination Style:	Plug In, 8 Pin (Octal)
Timing Adjustment Method:	Hand Dial
Timing Initiate Method:	Input Voltage, Trigger Signal

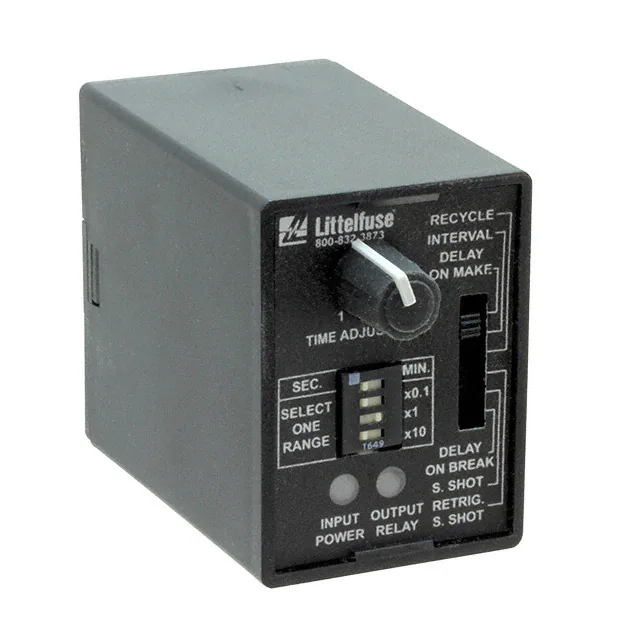

Littelfuse Inc. TRU2
