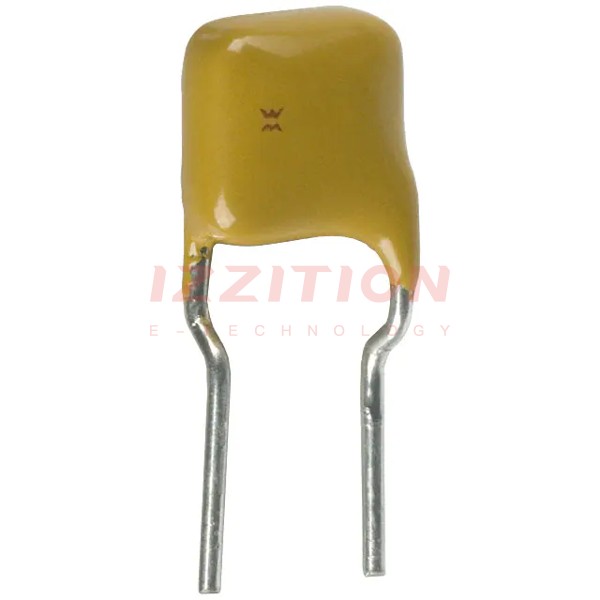

| Part Number | TRF250-120 | TRF250-180 | TRF250-120T | TRF250-120U | TCF250-120 | TR250-120 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V (250V Int) | 100V (250V Int) | 60V (250V Int) | 60V (250V Int) | 60V (250V Int) | 250V (60V Int) |
| Current - Max | 3 A | 10 A | 3 A | 3 A | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 120 mA | 180 mA | 120 mA | 120 mA | 120 mA | 120 mA |
| Current - Trip (It) | 240 mA | 650 mA | 240 mA | 240 mA | 240 mA | - |
| Time to Trip | 2.5 s | 2 s | 1.2 s | 1 s | 900 ms | 1.5 s |
| Resistance - Initial (Ri) (Min) | 4 Ohms | 800 mOhms | 7 Ohms | 6 Ohms | 5 Ohms | 4 Ohms |
| Resistance - Post Trip (R1) (Max) | 16 Ohms | 4 Ohms | 16 Ohms | 16 Ohms | 14 Ohms | 16 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Nonstandard SMD | Radial, Disc |
| Size / Dimension | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.217" L x 0.217" W (5.50mm x 5.50mm) | 0.256" L x 0.181" W (6.50mm x 4.60mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) | 0.394" (10.00mm) | - | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - | - | 0.091" (2.30mm) | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
