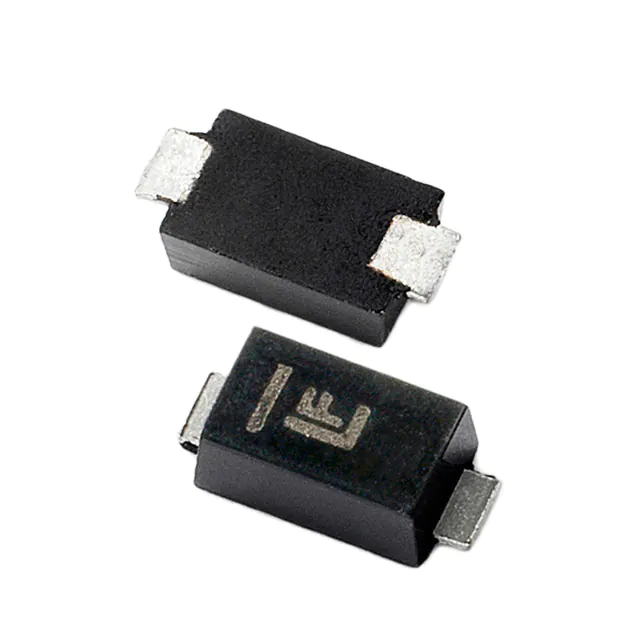

| Part Number | TPSMF4L70A | TPSMF4L75A | TPSMF4L78A | TPSMF4L10A | TPSMF4L20A | TPSMF4L30A | TPSMF4L40A | TPSMF4L60A | TPSMF4L7.0A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 70V | 75V | 78V | 10V | 20V | 30V | 40V | 60V | 7V |
| Voltage - Breakdown (Min) | 77.8V | 83.3V | 86.7V | 11.1V | 22.2V | 33.3V | 44.4V | 66.7V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 113V | 121V | 126V | 17V | 32.4V | 48.4V | 64.5V | 96.8V | 12V |
| Current - Peak Pulse (10/1000µs) | 3.5A | 3.3A | 3.2A | 23.5A | 12.3A | 8.3A | 6.2A | 4.1A | 30.9A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
