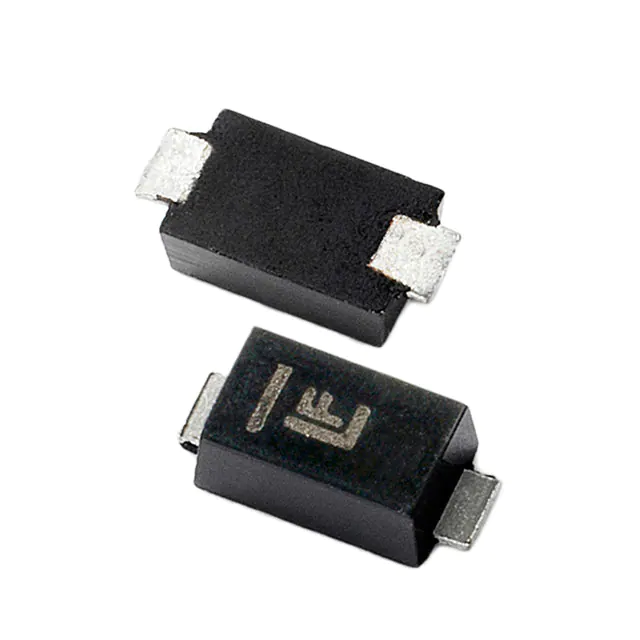

| Part Number | TPSMF4L7.5A | TPSMF4L75A | TPSMF4L8.5A | TPSMF4L6.5A | TPSMF4L7.0A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 7.5V | 75V | 8.5V | 6.5V | 7V |
| Voltage - Breakdown (Min) | 8.33V | 83.3V | 9.44V | 7.22V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12.9V | 121V | 14.4V | 11.2V | 12V |
| Current - Peak Pulse (10/1000µs) | 28.7A | 3.3A | 25.7A | 33.1A | 30.9A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
