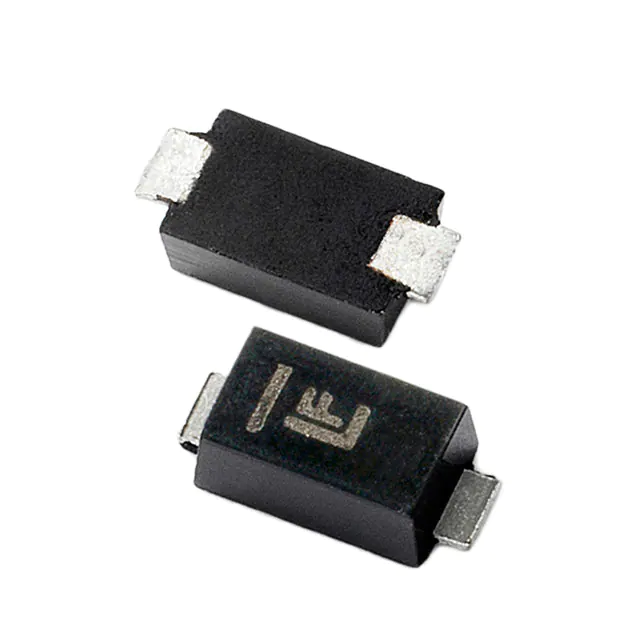

| Part Number | TPSMF4L28A | TPSMF4L48A | TPSMF4L58A | TPSMF4L78A | TPSMF4L18A | TPSMF4L20A | TPSMF4L22A | TPSMF4L24A | TPSMF4L26A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 28V | 48V | 58V | 78V | 18V | 20V | 22V | 24V | 26V |
| Voltage - Breakdown (Min) | 31.1V | 53.3V | 64.4V | 86.7V | 20V | 22.2V | 24.4V | 26.7V | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 45.4V | 77.4V | 93.6V | 126V | 29.2V | 32.4V | 35.5V | 38.9V | 42.1V |
| Current - Peak Pulse (10/1000µs) | 8.8A | 5.2A | 4.3A | 3.2A | 13.7A | 12.3A | 11.3A | 10.3A | 9.5A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
