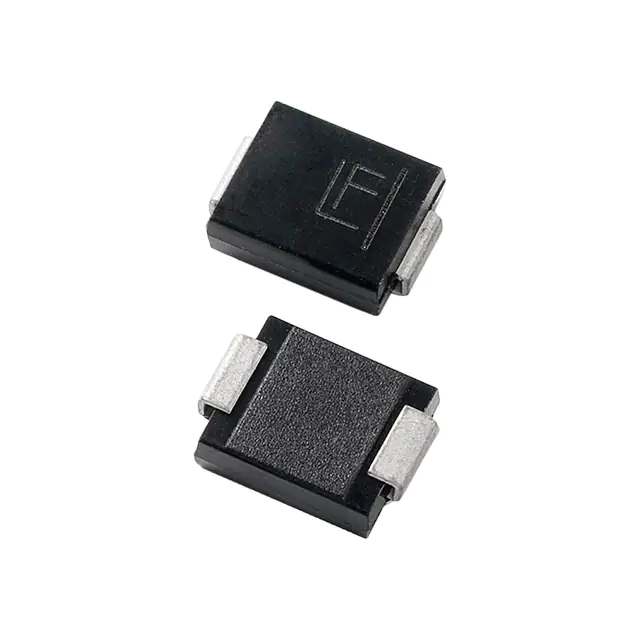

| Part Number | TPSMD26CA | TPSMD36CA | TPSMD28CA | TPSMD16CA | TPSMD20CA | TPSMD22CA | TPSMD24CA | TPSMD26A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 26V | 36V | 28V | 16V | 20V | 22V | 24V | 26V |
| Voltage - Breakdown (Min) | 28.9V | 40V | 31.1V | 17.8V | 22.2V | 24.4V | 26.7V | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 58.1V | 45.4V | 26V | 32.4V | 35.5V | 38.9V | 42.1V |
| Current - Peak Pulse (10/1000µs) | 71.3A | 51.6A | 66.1A | 115.4A | 92.6A | 84.5A | 77.1A | 71.3A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
