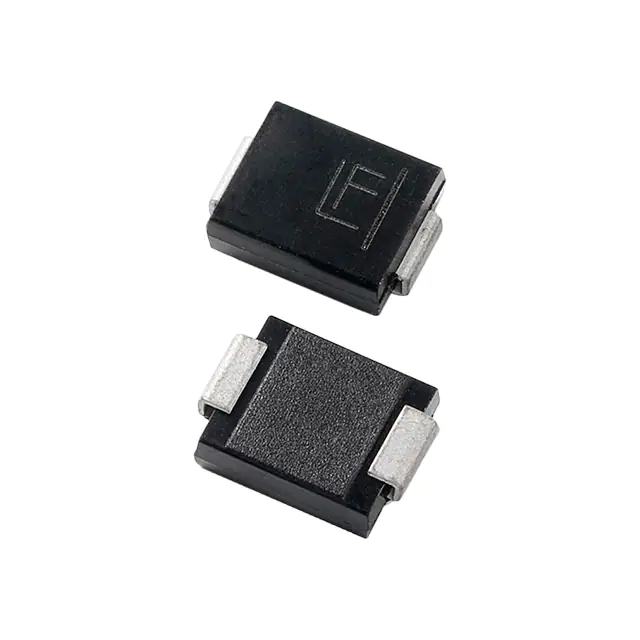

| Part Number | TPSMD24A | TPSMD28A | TPSMD24CA | TPSMD26A | TPSMD54A | TPSMD64A | TPSMD14A | TPSMD20A | TPSMD22A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V | 28V | 24V | 26V | 54V | 64V | 14V | 20V | 22V |
| Voltage - Breakdown (Min) | 26.7V | 31.1V | 26.7V | 28.9V | 60V | 71.1V | 15.6V | 22.2V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 45.4V | 38.9V | 42.1V | 87.1V | 103V | 23.2V | 32.4V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 77.1A | 66.1A | 77.1A | 71.3A | 34.4A | 29.1A | 129.3A | 92.6A | 84.5A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
