| Part Number | TPSMD20A | TPSMD22A | TPSMD30A | TPSMD24A | TPSMD60A | TPSMD28A | TPSMD26A | TPSMD40A | TPSMD20CA | TPSMD70A | TPSMD10A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 22V | 30V | 24V | 60V | 28V | 26V | 40V | 20V | 70V | 10V |
| Voltage - Breakdown (Min) | 22.2V | 24.4V | 33.3V | 26.7V | 66.7V | 31.1V | 28.9V | 44.4V | 22.2V | 77.8V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 35.5V | 48.4V | 38.9V | 96.8V | 45.4V | 42.1V | 64.5V | 32.4V | 113V | 17V |
| Current - Peak Pulse (10/1000µs) | 92.6A | 84.5A | 62A | 77.1A | 31A | 66.1A | 71.3A | 46.5A | 92.6A | 26.5A | 176.5A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

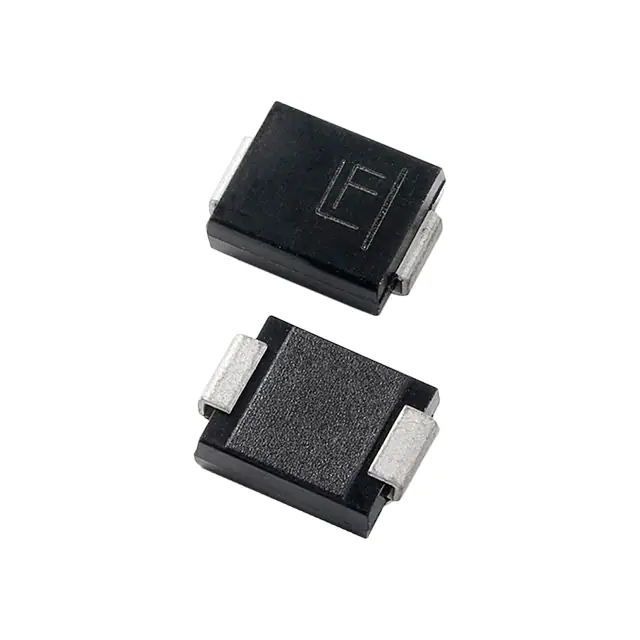

| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
